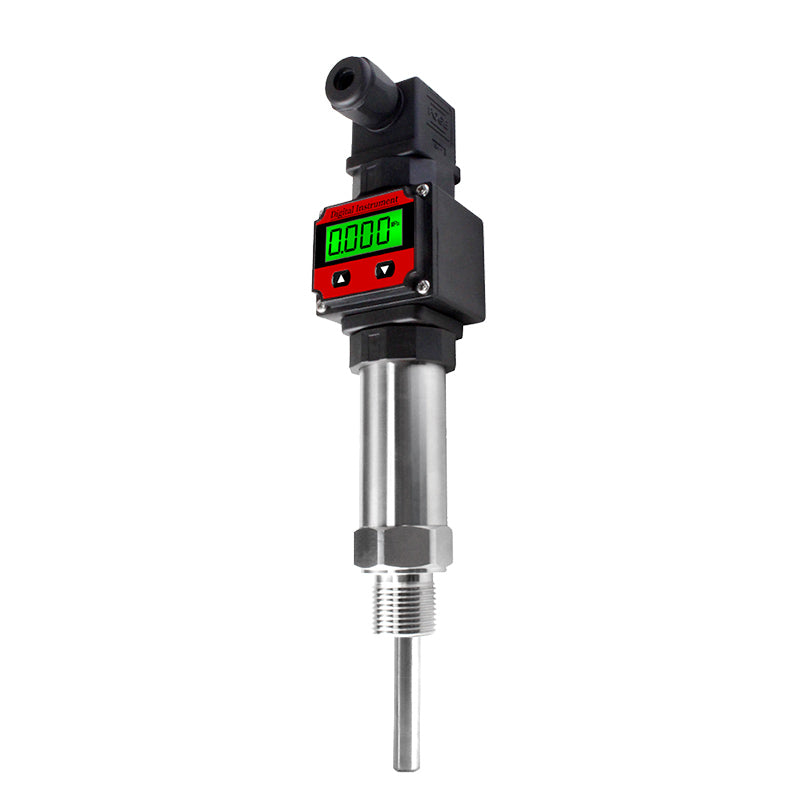

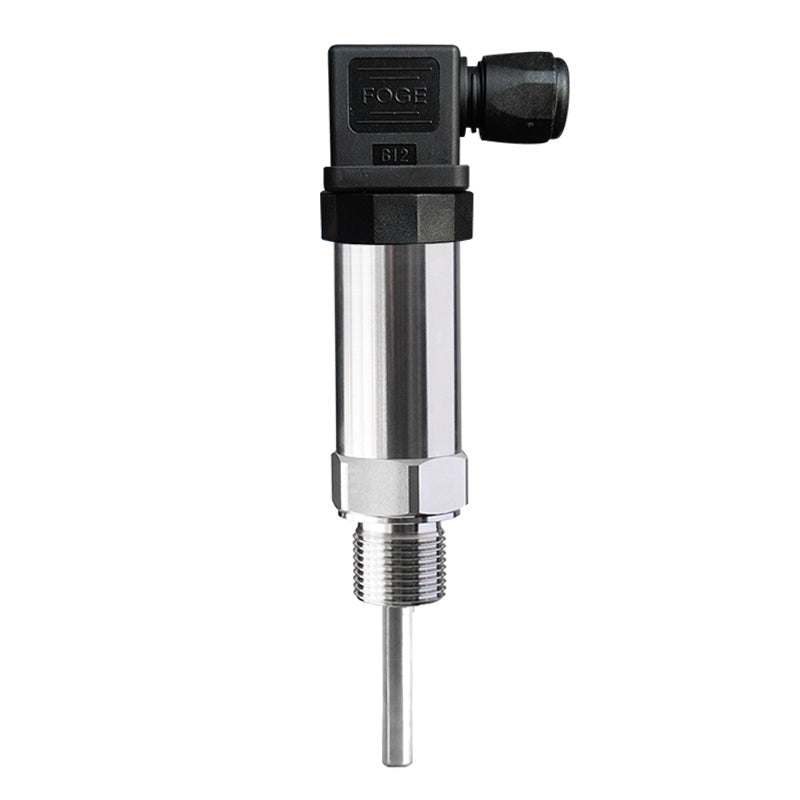

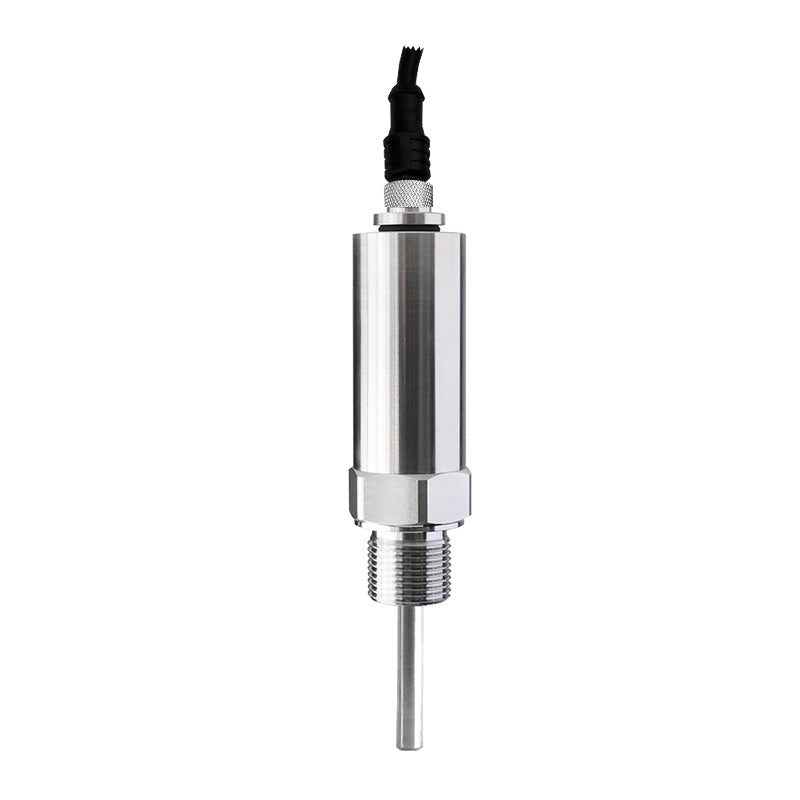

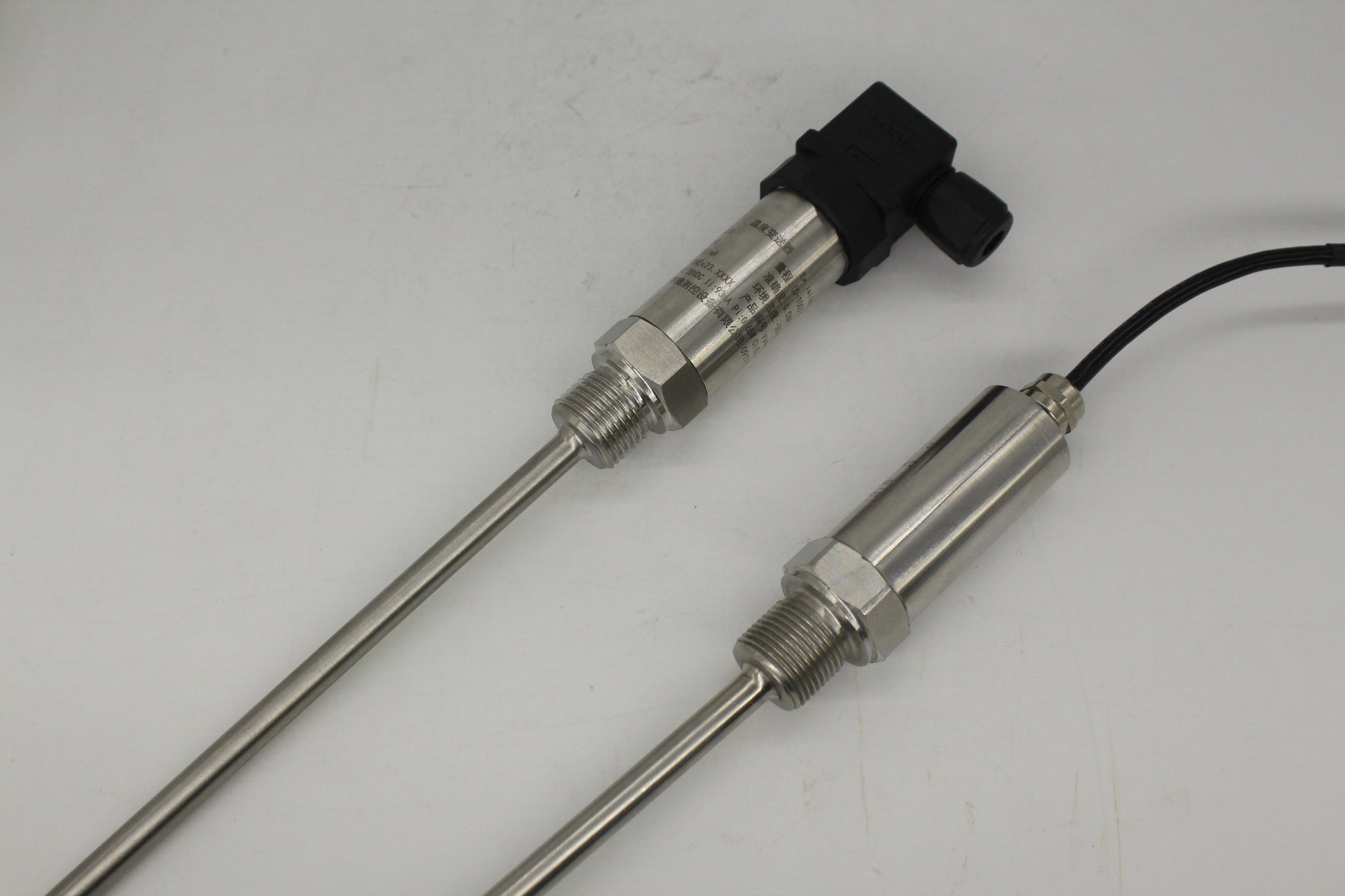

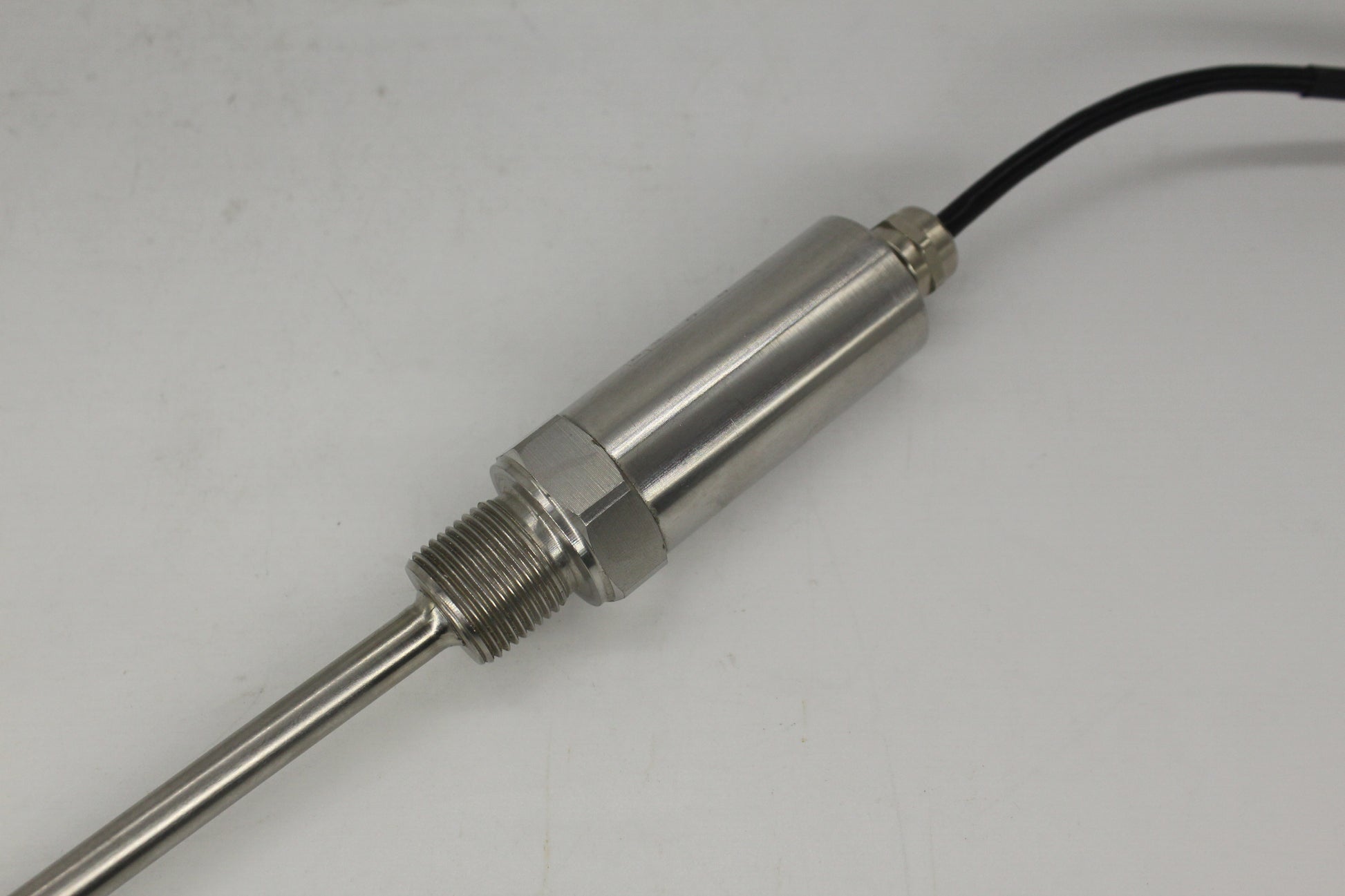

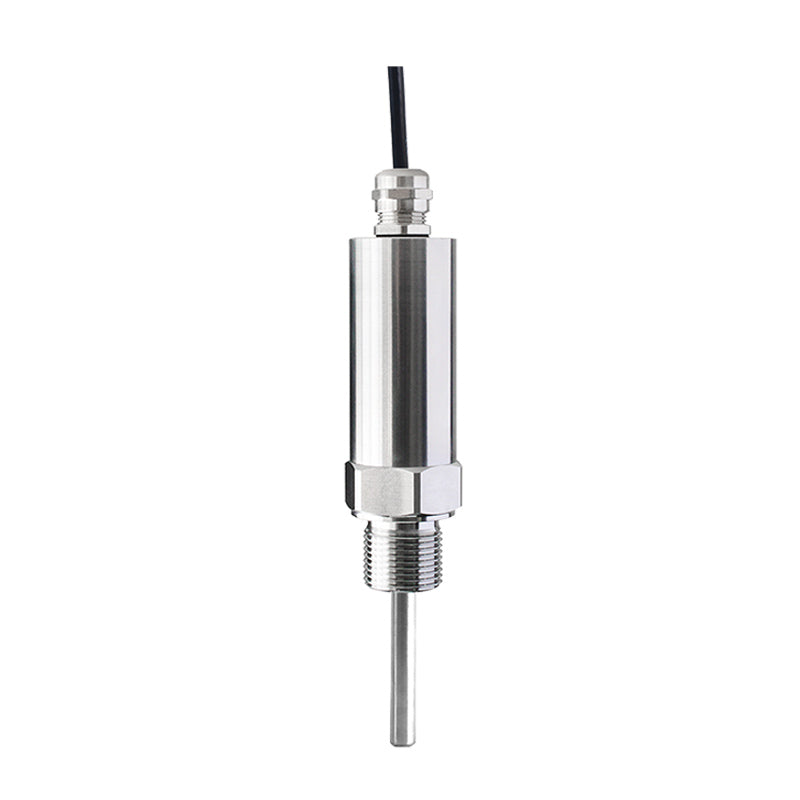

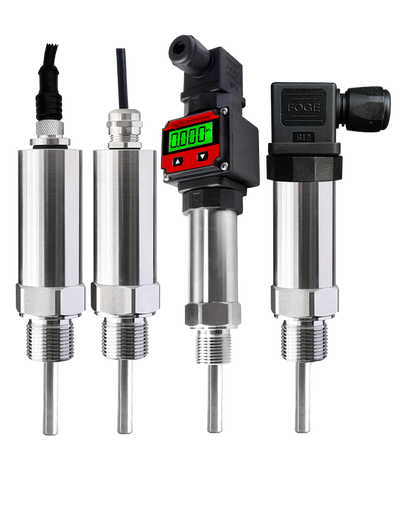

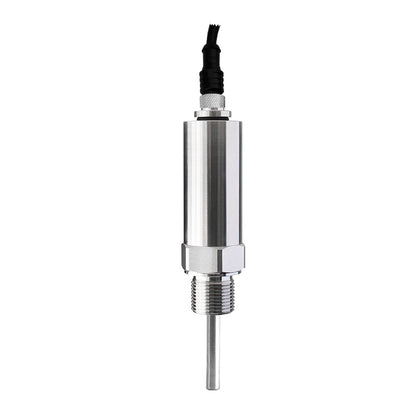

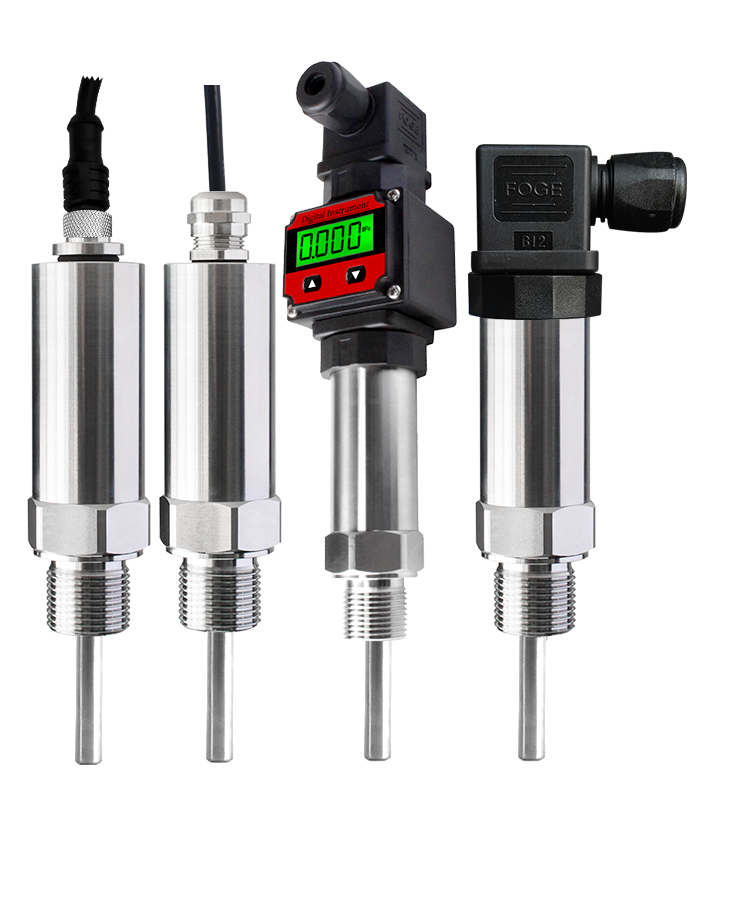

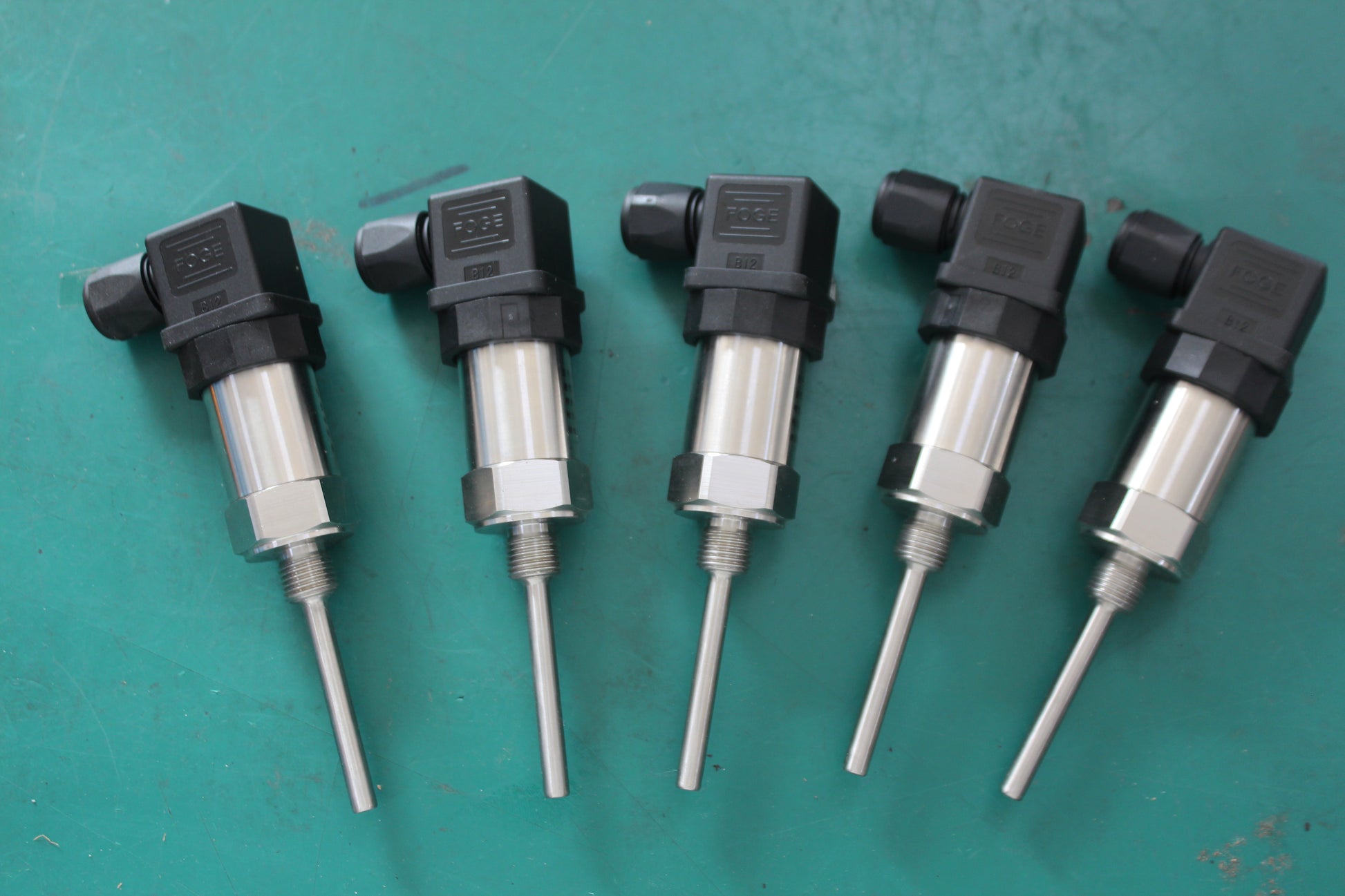

QTB100 High Performance Temperature Transmitter
QTB100 High Performance Temperature Transmitter
Price upon request
Couldn't load pickup availability
The QTB100 temperature transmitter is engineered for precise and reliable temperature measurement in demanding industrial applications. It supports a wide measurement range from -200°C to 400°C and offers multiple signal outputs including 4–20mA, RS485, and 0–5V/10V. Built with robust stainless-steel housing, the device delivers stable performance under harsh environments, ensuring long-term durability and accuracy.
Applications:
Petrochemical plants
Chemical processing
Water conservancy projects
Power generation
Metallurgy and refining
Technical Specifications:
Parameter | Value |
---|---|
Measuring Range | -200°C to 400°C |
Power Supply | 24V ±20% |
Accuracy | 0.5% FS |
Signal Output | 4–20mA, RS485, 0–5V/10V |
Process Connection | M27×2 (customizable) |
Electrical Connection | DIN / M12 (optional) |
Ambient Temperature | -30°C to 70°C |
Storage Temperature | -40°C to 85°C |
Relative Humidity | 0–80% |
Protection Rating | IP65 |
Wetted Material | Stainless Steel 304 (default), optional 316L |
