QDB138 Clean Room Differential Pressure Gauge with LCD Display
QDB138 Clean Room Differential Pressure Gauge with LCD Display
Price upon request
Couldn't load pickup availability

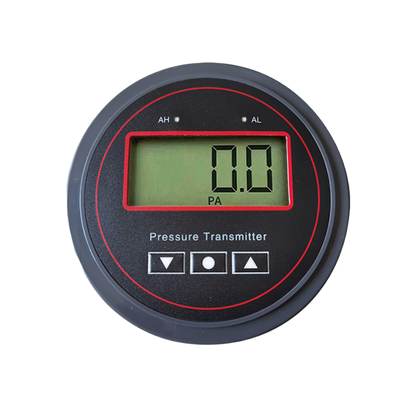

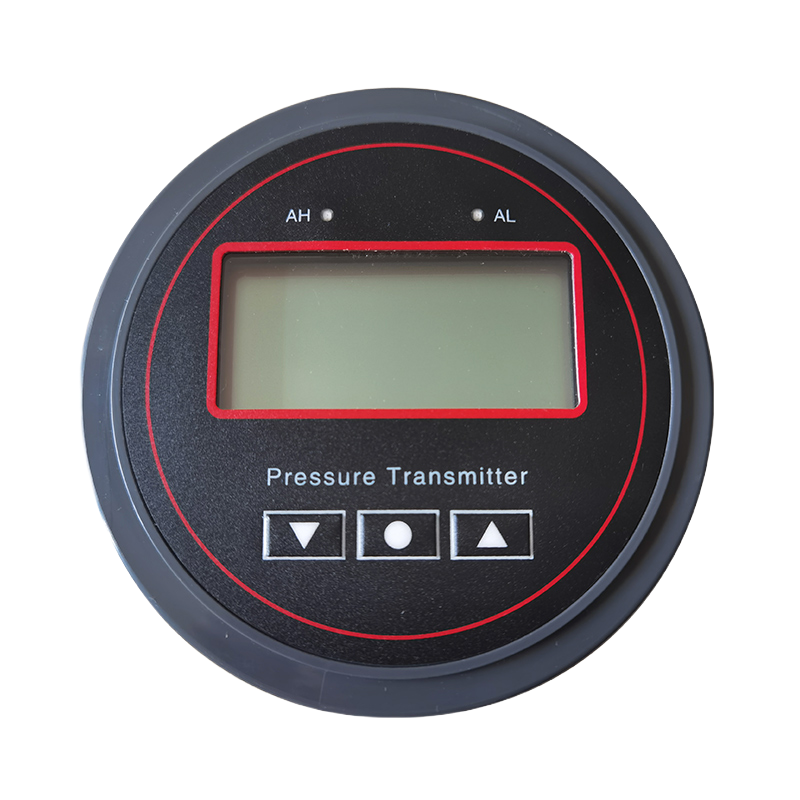

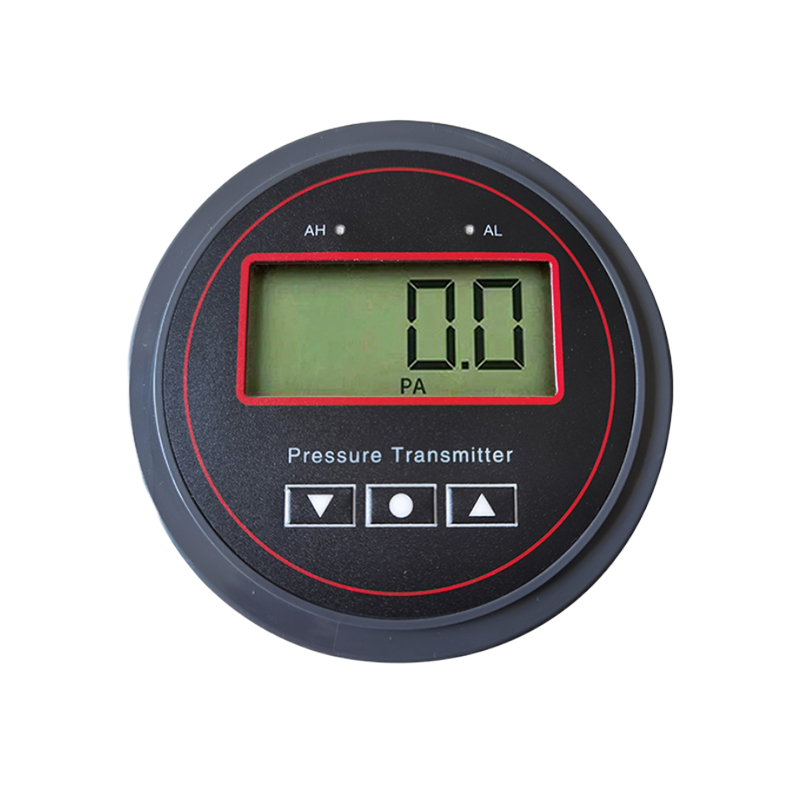

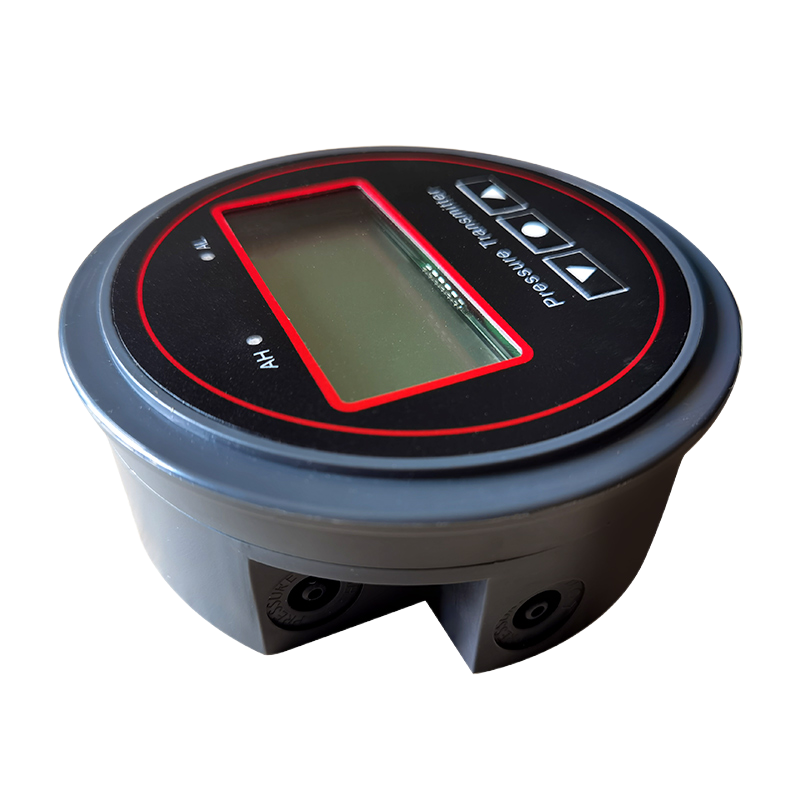

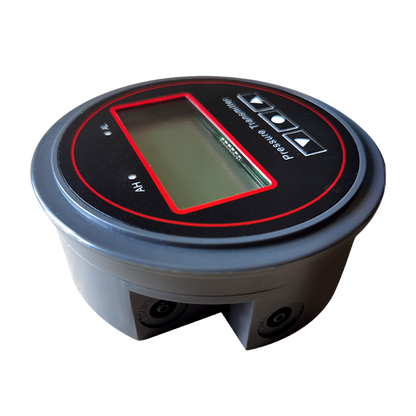

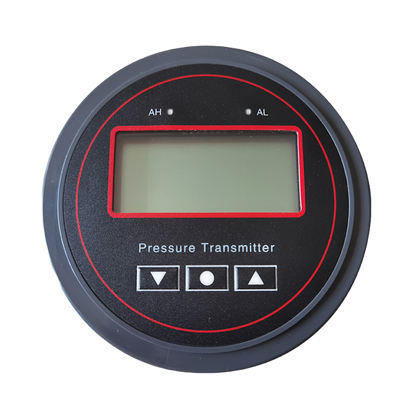

We offer the QDB138 Clean Room LCD Differential Pressure Gauge to customers across Canada. Designed for precise and stable differential pressure monitoring, this compact LCD gauge supports multiple outputs and features a clear digital interface. With a lightweight ABS housing and IP65 protection, it is ideal for cleanroom environments and medical equipment monitoring. The QDB138 supports both wall and recessed installation for flexible deployment.
Applications:
Clean room pressure monitoring
Positive and negative pressure in HVAC ducts
Medical laboratory systems
Non-corrosive air and gas filtration
Environmental engineering and dust-free facilities
Smart building pressure control
Technical Specifications:
Parameter | Value |
---|---|
Measuring Medium | Air and non-flammable, non-corrosive gases |
Measuring Range | 0–10 kPa |
Accuracy | 0.5% F.S / 1.0% F.S |
Display | LCD |
Output | 4–20mA / 0–5V / 0–10V / RS485 |
Medium Temperature | 0–60°C |
Working Temperature | -20–85°C |
Long Term Stability | ±0.5% F.S / year |
Shell | ABS |
Process Connection | Lateral direct airway connection |
Power Supply | 22–26V DC |
Protection | IP65 |
Response Time | 10s |
Weight | Around 260g |
