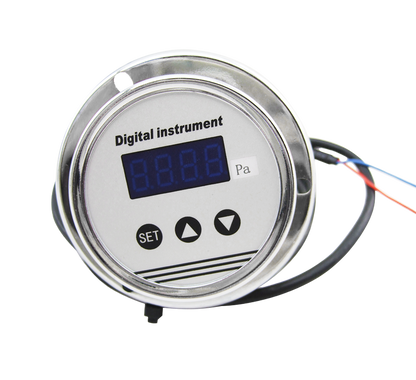

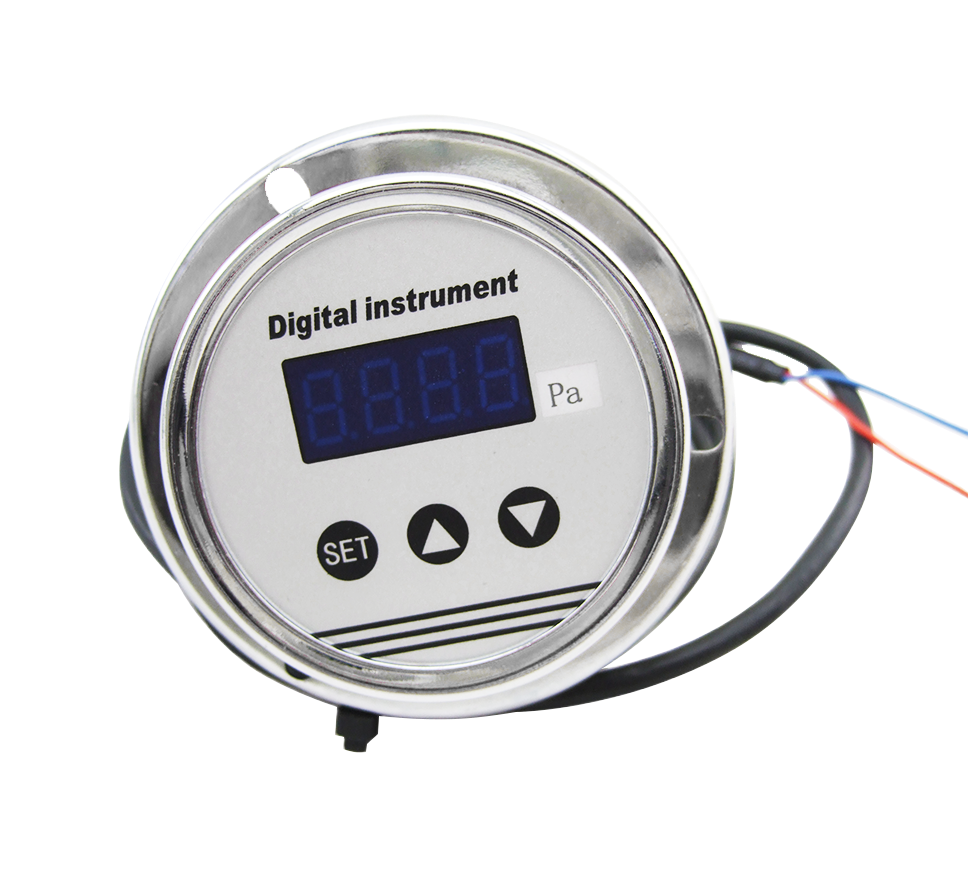

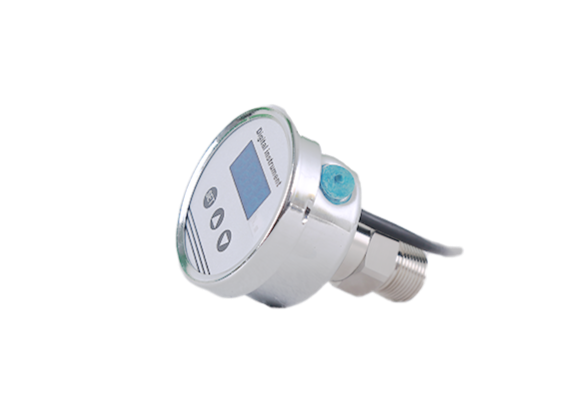

QDB130 LED Digital Pressure Gauge for Panel Mount
QDB130 LED Digital Pressure Gauge for Panel Mount
Price upon request
Couldn't load pickup availability
Product Description (EN)
We offer the QDB130 Digital Pressure Gauge to customers across Canada. This compact panel-mounted gauge features a bright 4-digit LED display with no parallax, high accuracy, and fast response. With a wide pressure range, strong overload protection, and stainless steel interface, it is ideal for hydraulic, pneumatic, and automated pressure measurement in industrial environments.
Applications:
Hydraulic and pneumatic systems
Panel-mounted automation control
Pressure monitoring in chemical and mechanical equipment
OEM applications requiring compact integration
Industrial test benches and mobile pressure displays
Technical Specifications:
| Parameter | Value |
|---|---|
| Pressure Range | 0–0.1 to 0–100MPa |
| Overload Capacity | 150% |
| Accuracy | ±0.25%F.S / ±0.5%F.S |
| Stability | ≤0.1% / year |
| Display | LED (4-digit) |
| Display Range | -1999 to 9999 |
| Thread Connection | G1/2, G1/4, M20×1.5 |
| Working Temperature | -20°C to +70°C |
| Power Supply | 12–30V DC |
| Pressure Type | Gauge Pressure / Absolute Pressure |
| Interface Material | Stainless Steel (SS316 / SS304 optional) |
| Relative Humidity | ≤80% |
| Mounting Type | Embedded / Panel mount (90mm front panel) |
