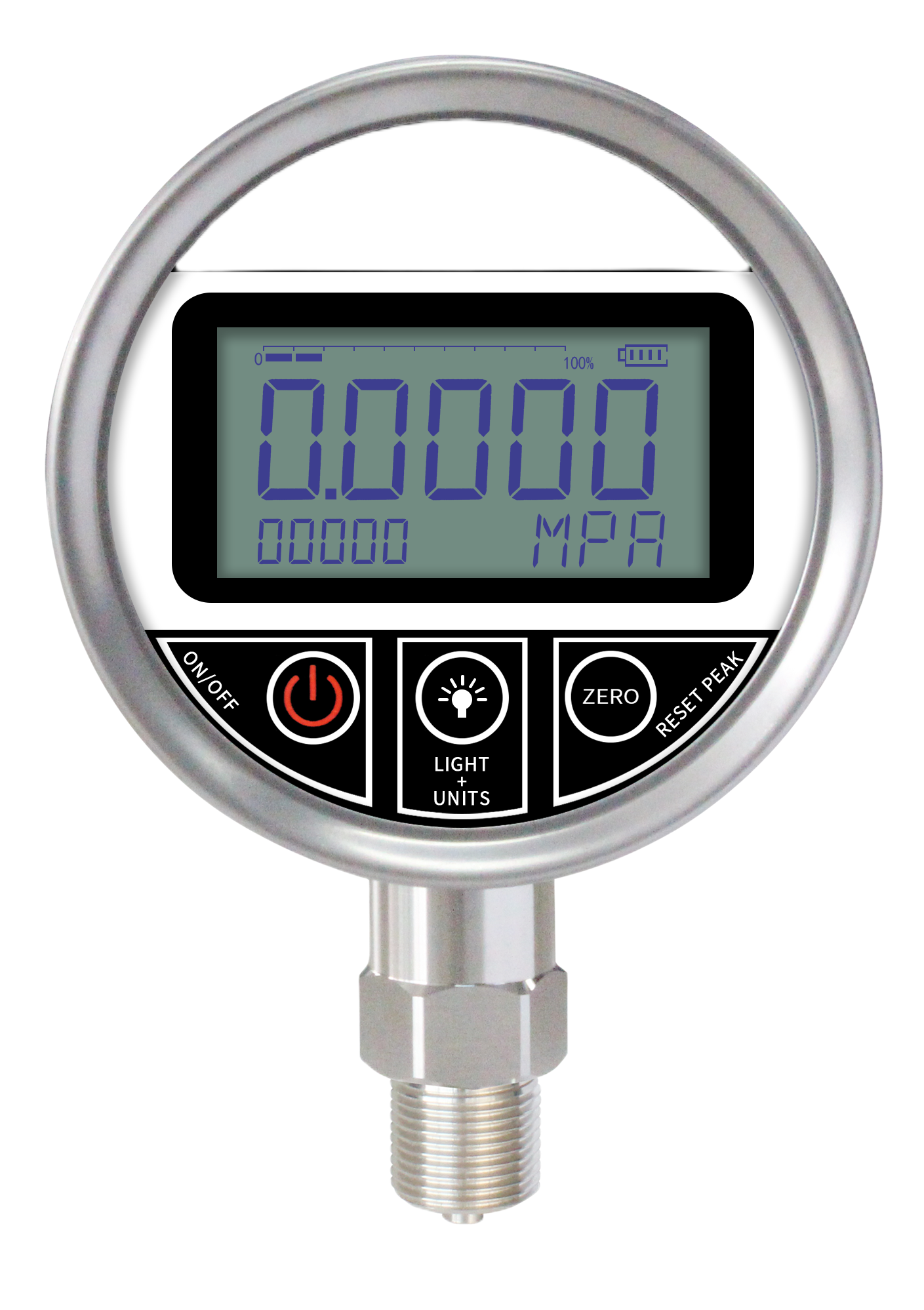

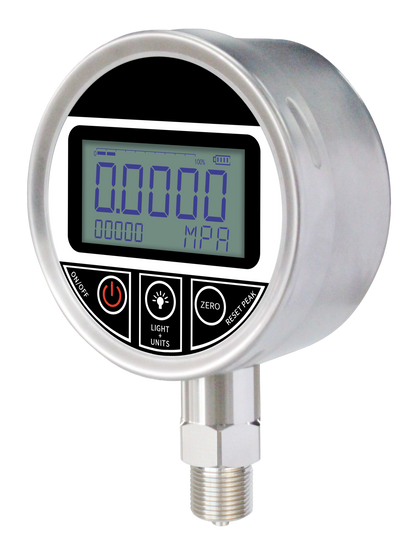

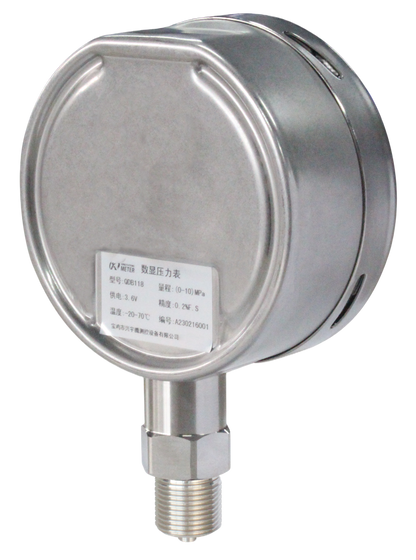

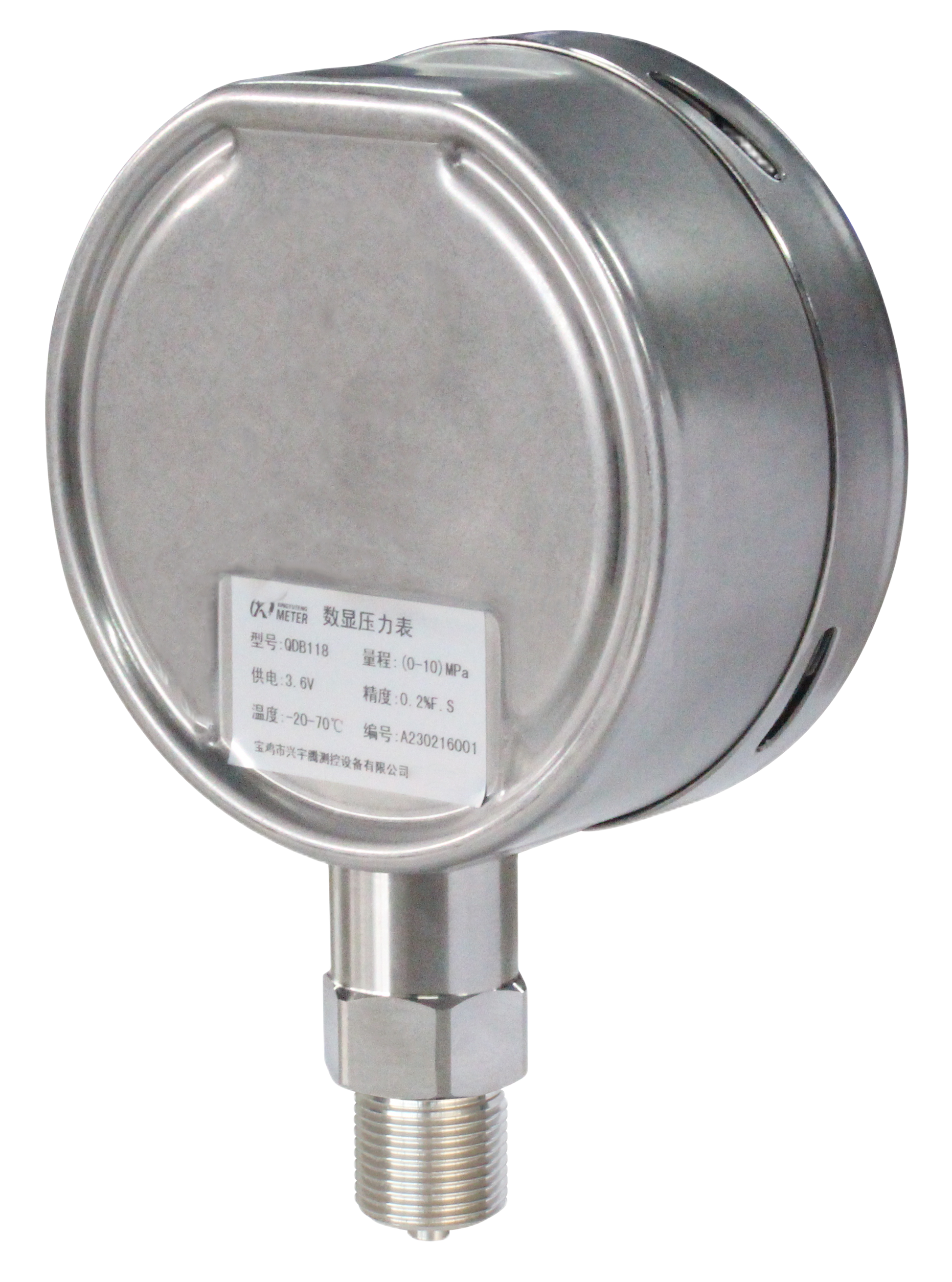

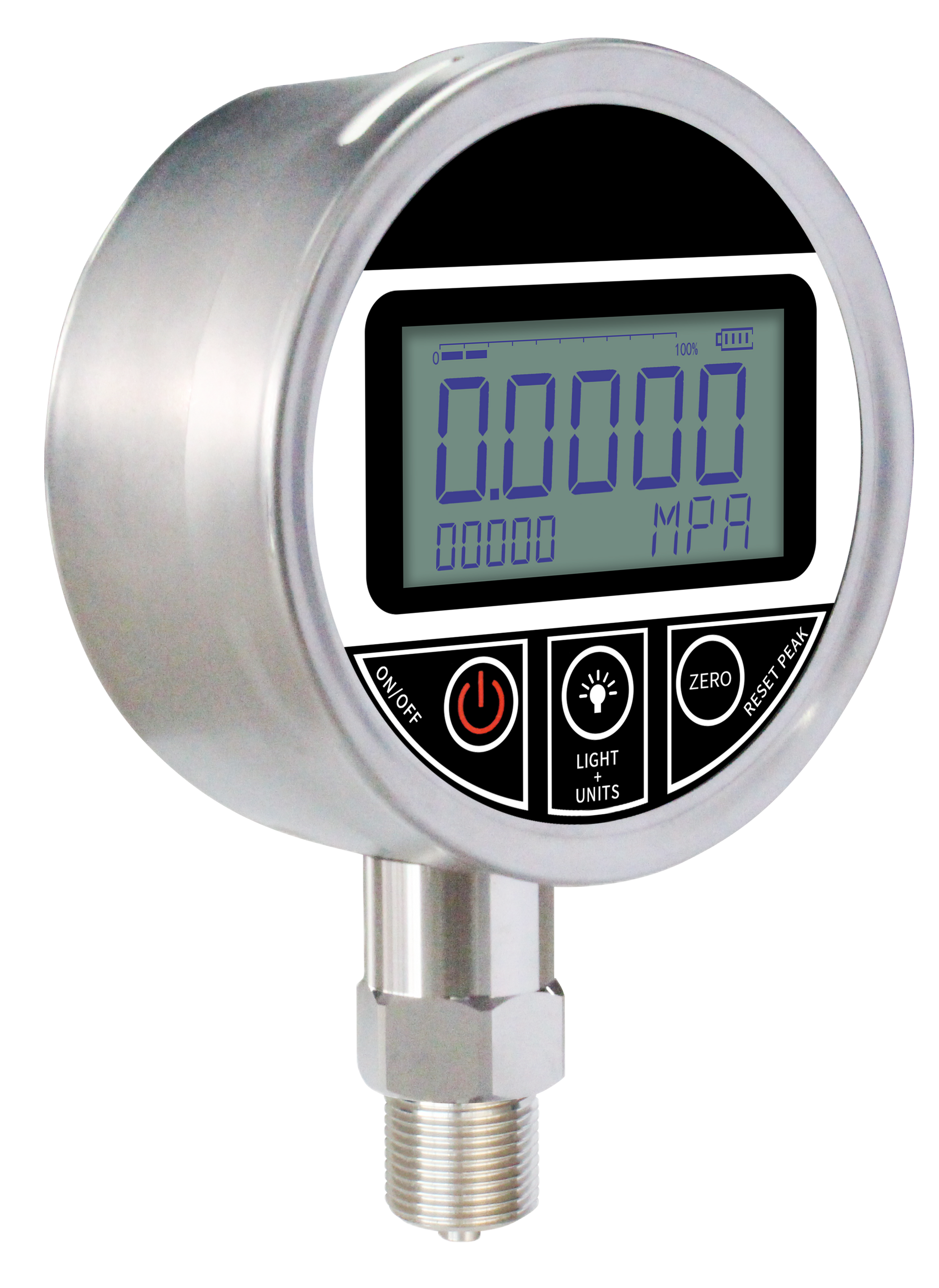

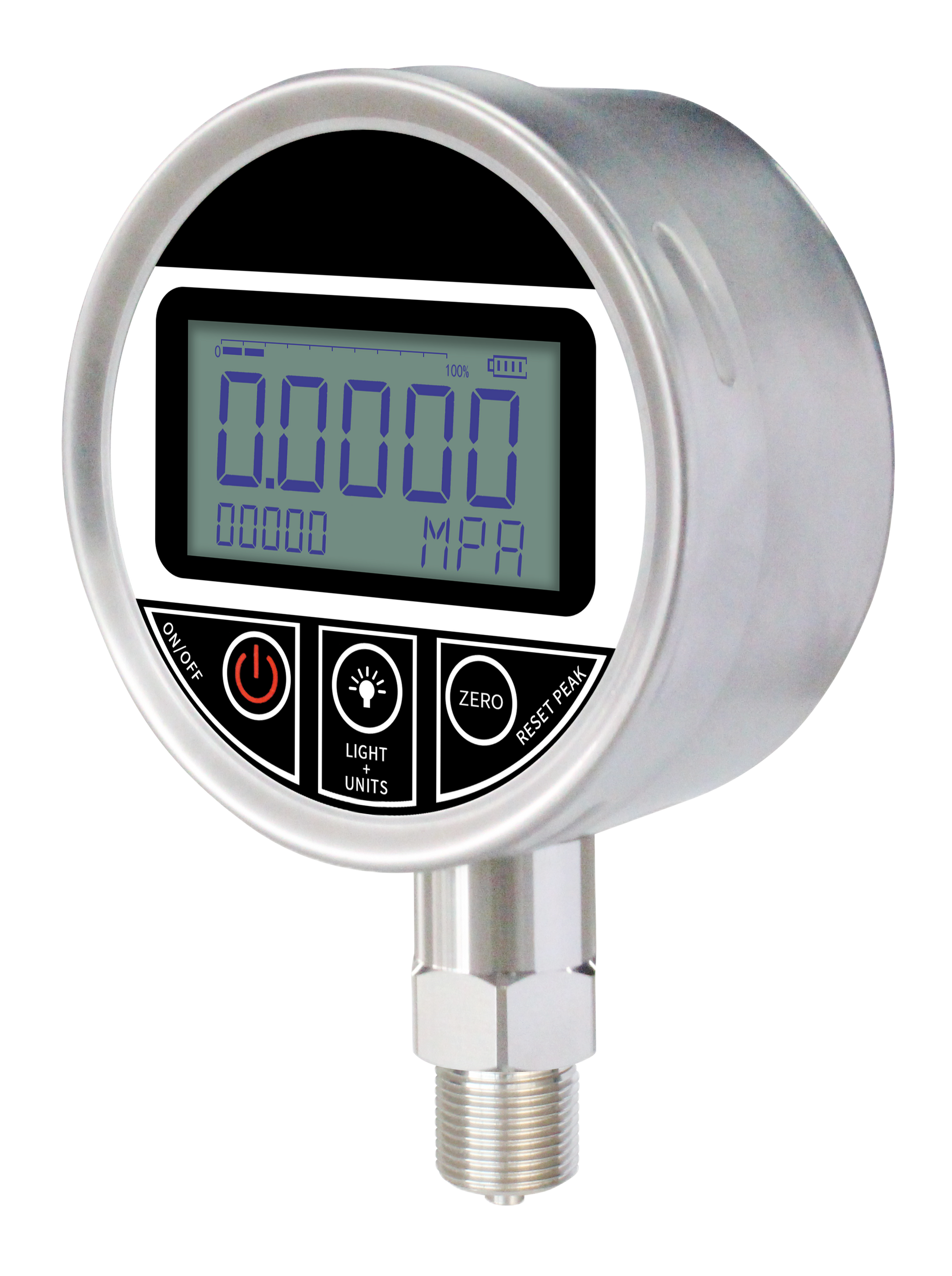

QDB118 High-Precision Digital Pressure Gauge with LCD Display
QDB118 High-Precision Digital Pressure Gauge with LCD Display
Couldn't load pickup availability
We offer the QDB118 High-Precision Digital Pressure Gauge to customers all across Canada. This advanced gauge is fully electronic, battery-powered, and equipped with a stainless steel case and a large LCD display. It uses a high-performance piezoresistive sensor with up to 0.05% F.S accuracy, making it suitable for critical measurement in hydraulic, water, chemical, and industrial systems. The QDB118 supports multiple pressure units, fast acquisition speed, and multiple thread options. As a Canada-based supplier, we ensure fast delivery and dedicated local support.
Applications:
Industrial pressure calibration and measurement
Chemical and pharmaceutical processing
Hydraulic system diagnostics
High-precision fluid pressure monitoring
Water and environmental pressure systems
Technical Specifications:
Parameter | Value |
---|---|
Power Supply | 3.6VDC battery |
Accuracy | 0.5% F.S / 0.2% F.S / 0.1% F.S / 0.05% F.S |
Long-Term Stability | ≤0.1% / year |
Display | LCD with backlight |
Display Range | -1999 to 9999 |
Pressure Range | -0.1~0–100MPa |
Pressure Type | Absolute / Gauge Pressure |
Thread Connection | M20×1.5, G1/2, G1/4 (customizable) |
Interface Material | SS304 / SS316 |
Ambient Temperature | -20°C to +70°C |
Relative Humidity | ≤80% |
Overload Capacity | 150% |
Warranty | 1 year |
