SV Tech

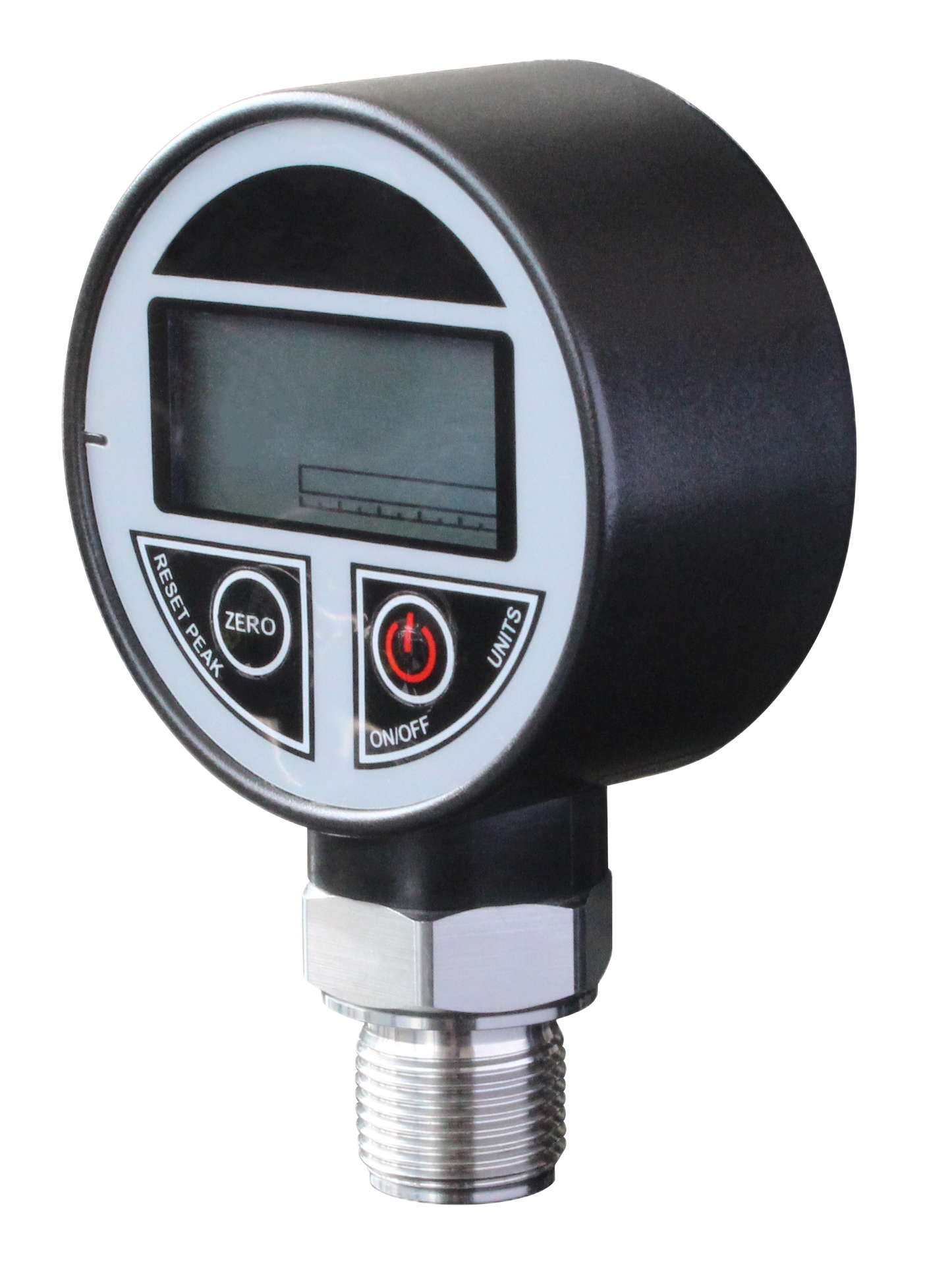

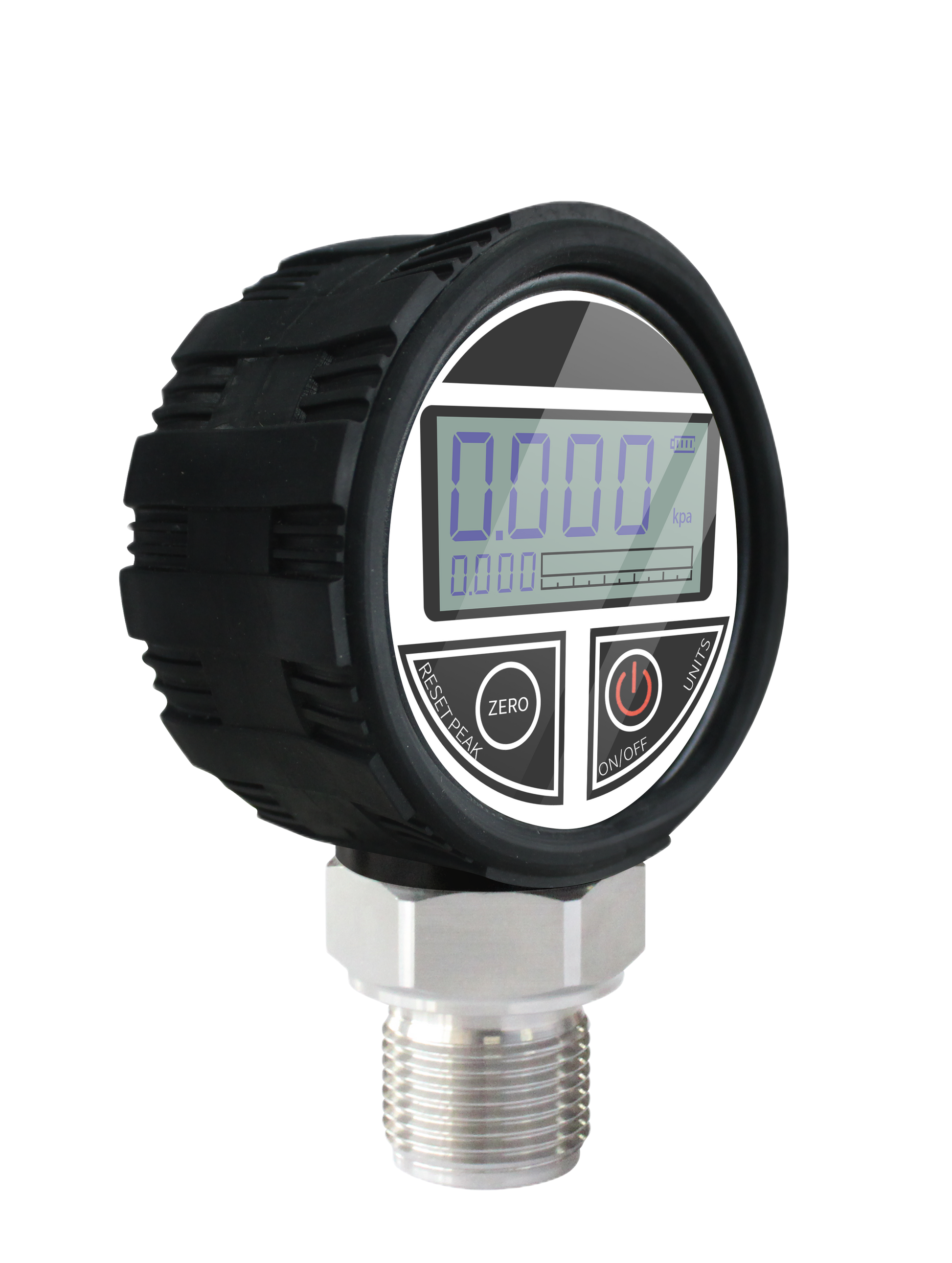

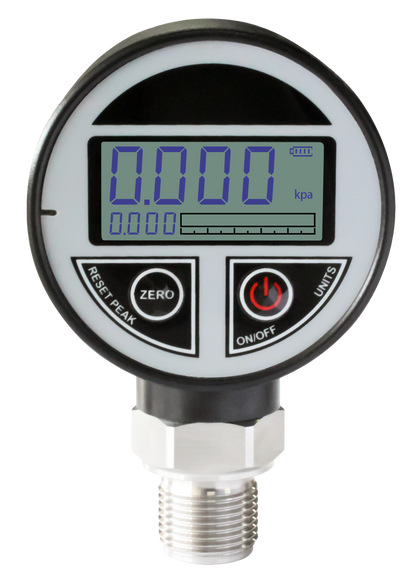

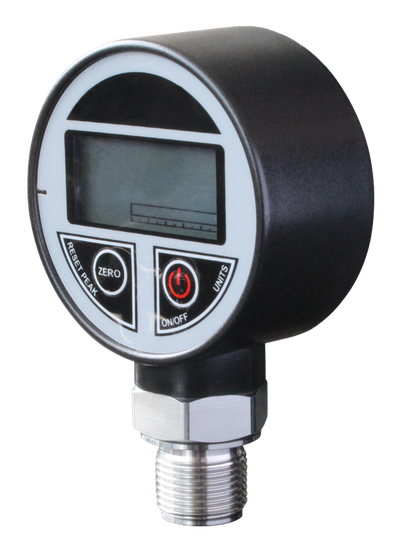

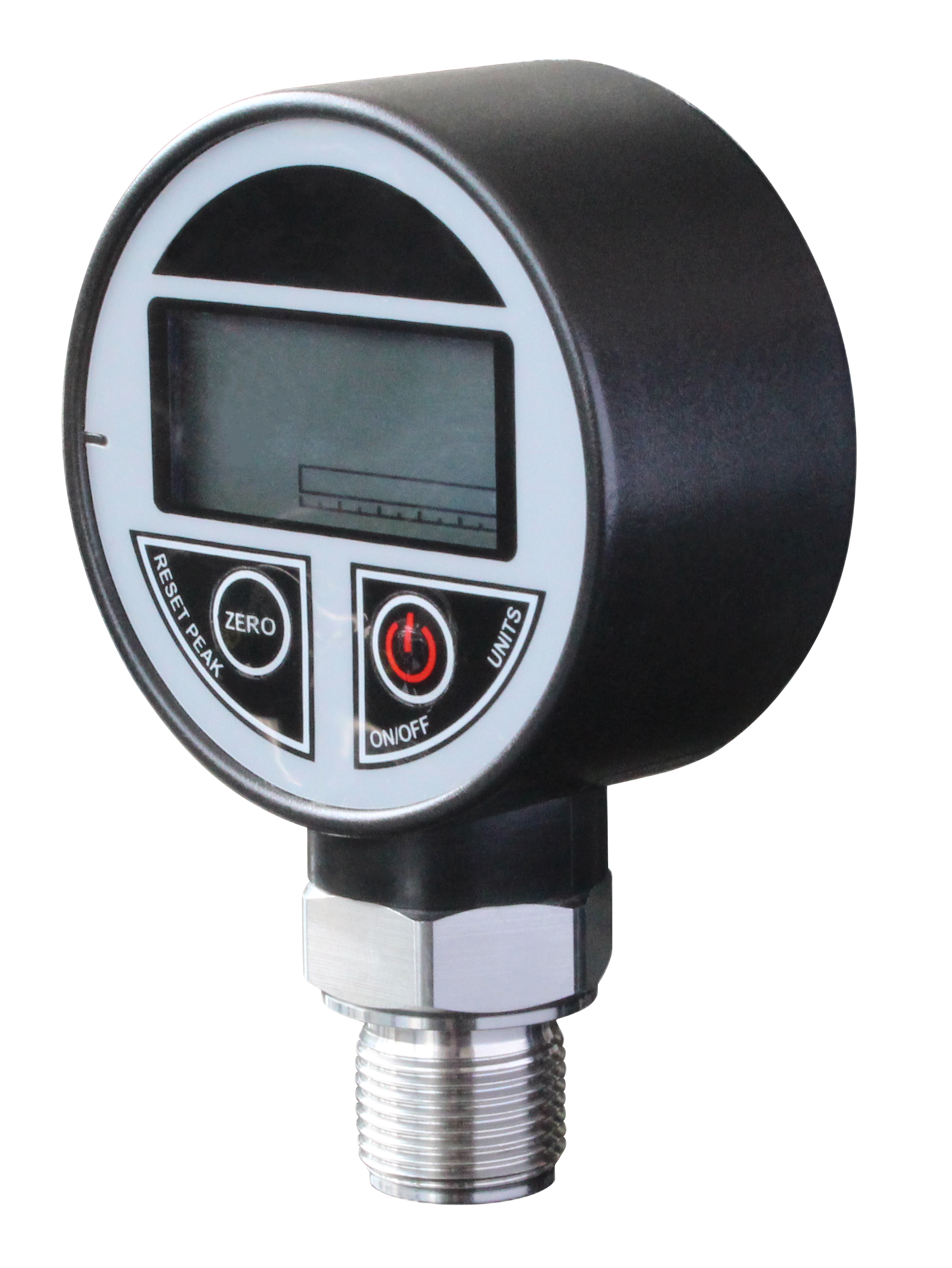

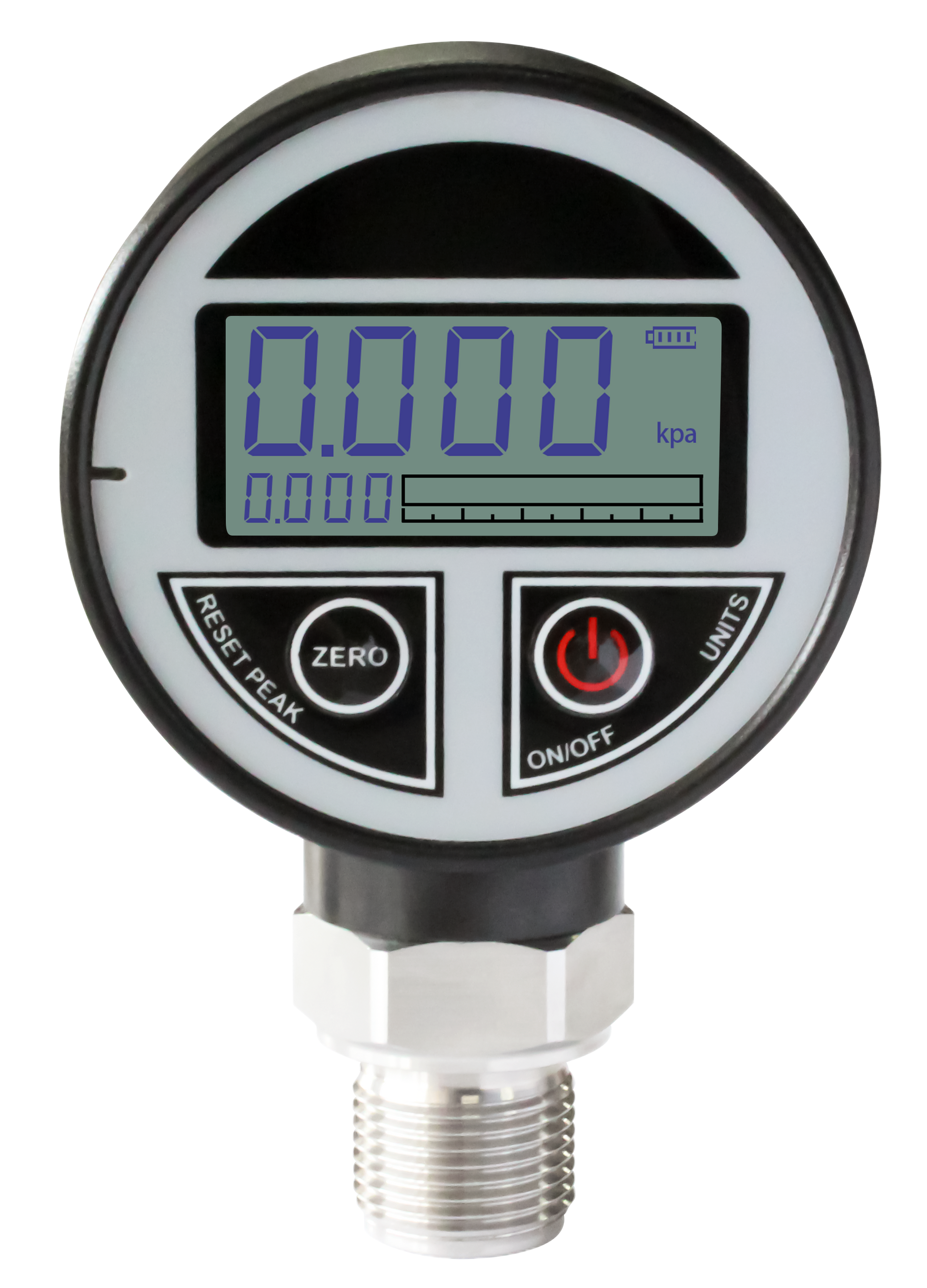

QDB108 Digital Pressure Gauge with LCD Display
QDB108 Digital Pressure Gauge with LCD Display
Couldn't load pickup availability
SV Tech proudly offers the QDB108 Digital Pressure Gauge to customers in Montreal, Quebec, and all across Canada. This high-precision electronic gauge is battery-powered, features a large backlit LCD display, and supports a 4–20mA output. With flexible operation, strong environmental resistance, and customizable threads, it’s ideal for fluid systems in industries such as water treatment, chemical processing, hydraulic equipment, and portable diagnostics. As a Canada-based supplier, we ensure fast delivery and dedicated local support.
Applications:
Industrial pressure monitoring in fluid systems
Water treatment and mechanical pressure measurement
Hydraulic and pneumatic machinery
Chemical and process engineering
Mobile testing and diagnostics environments
Technical Specifications:
| Parameter | Value |
|---|---|
| Power Supply | 9VDC battery |
| Accuracy | 0.5% F.S / 0.29% F.S / 0.1% F.S |
| Long-Term Stability | ≤0.1% / year |
| Display | LCD with backlight (0–15 min auto-off) |
| Display Range | -1999 to 9999 |
| Pressure Range | -0.1~0–100MPa |
| Pressure Type | Absolute / Gauge Pressure |
| Thread Connection | G1/2, G1/4, G1/8, NPT1/2, NPT1/4 (custom) |
| Output Signal | 4–20mA |
| Interface Material | SS304 / SS316 |
| Operation Temp | -10°C to +80°C (Cooling part > 80°C) |
| Relative Humidity | ≤80% |
| Warranty | 1 year |
